Custom High Precision Silicone O Ring Seals Rubber High Temp O Rings

SHANGRAO RUICHEN SEALING CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Custom High Precision Silicone O Ring Seals Rubber High Temp O Rings from wholesalers

    Buy cheap Custom High Precision Silicone O Ring Seals Rubber High Temp O Rings from wholesalers
    • Buy cheap Custom High Precision Silicone O Ring Seals Rubber High Temp O Rings from wholesalers
    • Buy cheap Custom High Precision Silicone O Ring Seals Rubber High Temp O Rings from wholesalers
    • Buy cheap Custom High Precision Silicone O Ring Seals Rubber High Temp O Rings from wholesalers
    • Buy cheap Custom High Precision Silicone O Ring Seals Rubber High Temp O Rings from wholesalers
    • Buy cheap Custom High Precision Silicone O Ring Seals Rubber High Temp O Rings from wholesalers
    • Buy cheap Custom High Precision Silicone O Ring Seals Rubber High Temp O Rings from wholesalers

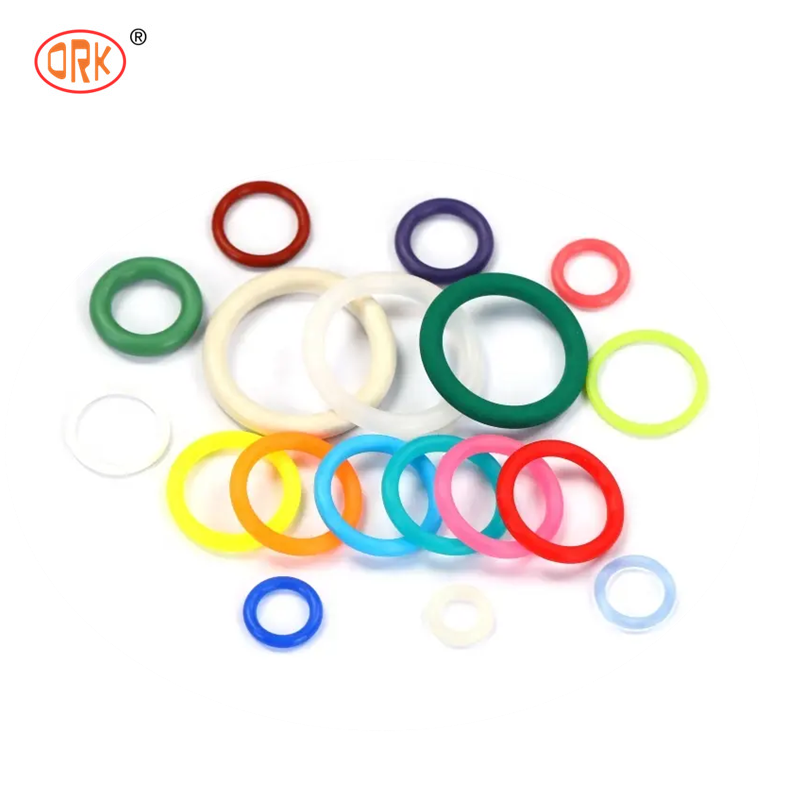

    Custom High Precision Silicone O Ring Seals Rubber High Temp O Rings

    Ask Lasest Price
    Brand Name : ORK
    Model Number : AS568 & PG Standard O-Rings
    Price : $0.03/pieces 1000-4999 pieces
    Certification : REACH / ROHS / ISO9001 / IATF / SGS / FDA
    Payment Terms : T/T , paypal , wechat , Alipay
    Supply Ability : 100000000000/week
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

    Custom High Precision Silicone O Ring Seals Rubber High Temp O Rings

    Custom High Precision Silicone O-Ring Seals Rubber O-Rings Stylishly Packed Export Products by ORK

    Type: O Ring

    Size: ID X CS, OD=ID + 2XCS

    An o-ring is a simple and versatile ring-shaped packing or sealing device with a circular cross section (from which the "O" in
    its name is derived). The purpose of using O-ring seals is to prevent leakage and loss of liquids or gases. They simplicity,
    convenience, and small installation space. As long as the groove design and material selection are correct, and the operating
    conditions are within the temperature range of the rubber material, the seal can have a long-term sealing effect in the static
    or dynamic seal.
    The size of o-ring is determined by the inner diameter ID and the wire diameter CS. O-ring size calculation:
    outer diameter = inner diameter + 2 x wire diameter (OD = ID + 2x CS).

    O-Ring Advantages:
    1. O-Rings offer an efficient and economical sealing element for a wide range of static or dynamic applications.

    2. O-Ring sizes are defined by the inner diameter-ID and the cross section-CS, our o-ring Inner Diameter can be from 0.5mm

    to 1500mm.

    3. Standard sizes such as AS568(PARKER sizes), JIS(P TYPE, G TYPE, S TYPE, V TYPE, F TYPE sizes), BS1516 sizes Metric sizes

    as well as non-standard sizes are all avaiblabe.

    4. We have more than 2000 o-ring mould toolings, so you could get any size here without set-up or tooling charge. Huge inventory

    of o-rings can meet your urgent requiremnets.

    5. A very wide range of elastomer material can be selected, main material: NBR(BUNA-N, Nitrile), FKM(FKM), Silicone(VMQ), HNBR,

    FFKM, EPDM, PU(Polyurethane, urethane), Fluorosilicone(FVMQ), Neoprene(CR) and so on. Hardness of material can be from 40

    ShoreA(Durometer) to 90 ShoreA(Durometer)


    O-Ring Technical requirements:

    Appearance meets GB/T3452.2-2007 Material meets HG/T2579-2008 Size meets GB/T3452.1-2005


    In addition, all our products are ROHS and REACH Compliant (we mainly export products to USA and Europe market).


    O-Ring Features:
    1. Good sealing solution, long service life.
    2. Easy installation reduces risk.
    3. Working in various medium based on different elastomer material.


    Product NameHigh Precision Silicone O-Ring Seals
    MaterialsNBR, HNBR, EPDM, SILICONE, VITON, FLS, FFPM, PTFE
    Temperature

    NBR(-40~120°C),FFKM(-20~320°C)

    Viton(-20~200°C),Silicone (-70~220°C)

    EPDM(-50~150°C),PU(-40~90°C)

    FeatureResistance to high pressure, oil, weather, abrasion, solvent, high temperature, abrasion resistant, aging resistant, insulation, acid and alkaline resistant
    CerfiticateISO 9001:2008
    Hardness30-90 shores A
    ColorRed, Black, White, blue, green, Clear, etc
    SizeAny size, Customized/standard and nonstandard
    Sample timeIf instock, within 3 days after payment
    Delivery time

    7-15 days by express after payment

    10-20 days by ship

    Shipping

    Small quantity: UPS/FeDex/DHL express

    Large quantity: by Air/Sea

    CustomizedOEM & ODM are welcomed
    packingplastic bag&carton box or according to your requirements
    Applicationchemical industry, petroleum industry, medical technique, food industry, sewage-disposal industry, steel industry, semi-conduct industry and so on.

    Silicone Rubber (Q, MQ, VMQ, PVMQ)


    MaterialSIL(Silicone Rubber)
    Advantage1,Excellent Rebound Resistance
    2,Excellent Oxygen and Ozone Resistance
    3,Excellent Weathering and Heat Resistance
    4,Excellent Heat and Low Temperature Resistance
    5,Good heat insulation and heat dissipation.
    6,Good electrical insulation
    Disadvantage1,Poor Aliphatic-solvent Resistance
    2,Poor Alkaline Resistance
    Temperature-40-220, -100-250(special formula)
    Application1,the household appliances industry seal or rubber parts, such as electric kettle, electric irons, microwave oven rubber parts.
    2,The electronics industry seal or rubber parts, such as mobile phone keys, shock pad DVD, cable joint seal etc.
    3,Contact with the human body on various types of products on the seal, such as water bottles, water dispensers

    *Service Temperature
    For Silicones the service temperatures are from -60 C to 225 C. Some special types can be used in extreme

    temperature up to 300 C and down to -100 C.

    *Application
    Silicone rubber performs well under environmental and temperature extremes. It is usually applied in automotive

    and aerospace industries where flexibility and longevity are important. It is also a suitable material for parts that

    need FDA approval for food handling equipment and appliances.


    We have certificates :ISO 9001:2015 , ISO 14001:2015 ,ISO 45001:2018 , IATF , FDA, REACH,ROHS, SGS etc.

    IATF 16949 2016.pdf

    ISO 9001 2015.pdf

    ISO45001.pdf

    ISO 14001.pdf


    For color , we can make as customers' requirements .Below table is the colorful o rings

    we made.If you need colored o rings , you can give me pantone number .

    Custom High Precision Silicone O Ring Seals Rubber High Temp O Rings


    We can also produce Automotive Rubber Seals ,Connector Rubber Seals ,Power Tool Rubber seals ,Valve

    Rubber Seals ,Pipe Rubber Seals ,Semiconductor Rubber Seals ,Hydraulic Pneumatic Rubber Seals ,Pump

    Rubber Seals ,Oil and Gas Seals ,Food Grade Rubber Seals ,Medical Rubber Seals ,Chemical Equipment

    Rubber Seals ...etc.


    Our Factory


    1. Since 2006, focus on rubber seals, especially for auto parts


    2. Certificates: ISO9001, IATF16949, ISO14001, ISO45001,ISO 13485


    3. Two factories, more than 18000㎡,clean room 600㎡, with 300 workers.


    4. Molds > 10000 sets, especially o rings, about 5000 sets.


    5.O-ring series covers American standard (AS568), Japanese standard (JIS), national

    standard(GB), and produces a large number of customized non-standard parts.


    6. Material: NBR, FKM, SIL, EPDM, CR, NR, PU, HNBR, FFKM, SBR .The rubber materials

    used meet the requirements of ROHS2.0 and REACH235.


    7. Material Certificates: FDA, ROHS, REACH, UL157, CP65 WRC, EN549,EN45545.


    8. Products are widely used in automotive parts, electronic connectors, valves, pneumatics,
    power tools, new energy, medical equipment, electronic products and other fields.


    9. company has introduced HRP, ERP and other systems since its inception.
    10. The company's labor cost, raw material procurement, production process and
    product quality were comprehensively and scientifically controlled.


    Our strength:

    PROFESSIONAL OEM & ODM 30+ YEARS OF RUBBER SEALING MANUFACTURER

    ☆ PROFESSIONAL OEM & ODM 30+ YEARS OF RUBBER SEALING MANUFACTURER
    ☆ FULL RANGE OF MOLDS OVER 10,000+
    ☆ PROFESSIONAL TEAM PROVIDE EFFICIENT TRADING SERVICE
    ☆ STRICT QUALITY CONTROL--QUALITY GUARANTEE
    ☆ OWNED A TESTING LABORATORY WITH SOPHISTICATED TEST EQUIPMENT
    ☆ ADVANCED EQUIPMENTS: 50+ CURING MACHINE 8 CCD AUTOMATIC INSPECTION MACHINE 8 ALL-IN-ONE MACHINE



    Progress


    Quality control


    Material Inspection:Storage of all raw materials before the test, and issue a report on the

    corresponding material properties, compared with raw material's own property report, two

    reports property values is consistent, can put in storage.

    Model Inspection:After the mold development or mold cleaning finished on the machine,

    we will test all the specifications of the mold to ensure that each cavity of the product

    specifications and quality.

    Production Inspection:The production process of the product inspection personnel timing

    semi-finished product inspection, ensure the quality of the rationality of technology, defective

    rate control in a reasonable range.
    Quanlity Control:The quality inspection department will conduct a sampling inspection of

    each batch of products
    Production Full Inspection:The optical inspect
    ion machine can ensure the appearance and

    dimension of the product are 100% qualified.


    Cooperative partner


    Ruichen company have cooperated with many superior customers as below , we have complete system and excellent productivity

    to serve for you


    International exhibition


    Why RUICHEN?

    Many big companies select RUICHEN for their rubber seals and customized rubber parts because we always

    satisfy them in quality, price, delivery, service, etc. At the same time, we also attach great importance to the

    small customers in niche markets.Whether your purchase quantity is big or small, you are our valuable partners.

    High Quality
    We continue to manufacture high-quality products for all customers and pursue 100% customer satisfaction,

    which has become one of our core competencies.

    Profession
    We have rich experience in materials, products, and production and excellent international trade and language

    communication skills.

    Best Services
    From quoting, sampling, production, and shipping to after-sales, our sales will provide you with the best service

    so that you can rest assured completely.

    10000+ Projects Delivered
    Over 10K projects have been sent to our customers worldwide in recent years, and we have received countless

    positive comments.

    Low Price
    Our customers can obtain maximum profits through the ISO management system and intelligent manufacturing

    to reduce our costs continuously.

    Massive Capacity
    Our in-house facilities allow us to get your projects done fast. And thanks to our strong relationship with rapid

    materials partners, our capacity is not limited.

    Fast Delivery
    Unlimited capacity, experienced engineers, and a flexible production system allow us to create your seals and

    production parts in a short period.

    1000+ Happy Customers
    We aim to keep every customer happy with reliable quality, fast turnaround, and excellent services. We want all

    our new customers to become long-term customers.

    Inquiry Guide


    In order to you can get faster and more accurate service, please send an inquiry according to this

    page

    Enquiries parameters: size, material, hardness, color, tolerance, working environment, purchase

    quantity , etc.

    1. Size:drawing or sample.

    2. Material: Silicone, NBR, EPDM, VITON&FKM, NR, HNBR, SBR, Neoprene, PU,FFKM,CR,IIR,ACM etc

    3. Hardness: 30 Shore A~90 Shore A

    4. Color: according to your request, the most common color is black.

    5. Tolerance: if there is special size requirements, please mention in enquiries. Otherwise, we will

    be in accordance with the international standard tolerance execution.

    6. Working environment: in order to produce more accurate production you need, please be sure

    to inform products work environment. Such as motion situation(is sports or stationary, whether

    there is friction), contact medium (exposure to corrosive gas, water vapor, acidic or alkaline liquid),

    etc.

    7. Purchase quantity: please offer purchase quantity per month/year.

    8. Customer information: in order to facilitate we understand more about your company, and contact

    you timely, please provide your company's name, phone number, E-mail contacts.


    If you clearly display above information,please send an inquiry to 86-18024335328; or mail to Shadow

    zhang (shadow@dgork.com ), we will reply to you as soon as possible! Thank you!

    Quality Custom High Precision Silicone O Ring Seals Rubber High Temp O Rings for sale
