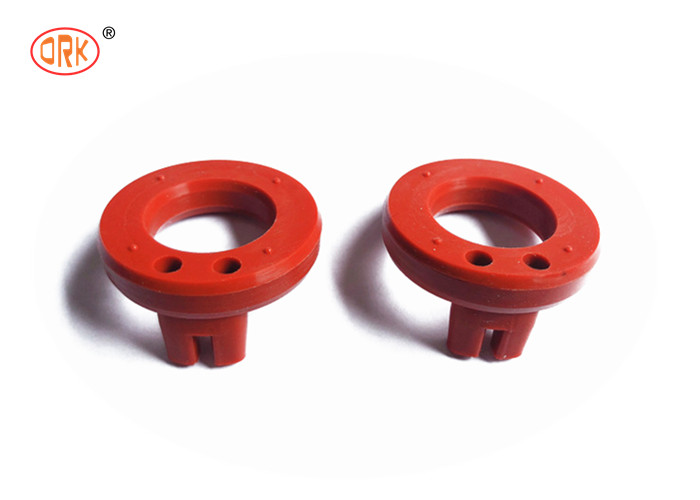

Red Shock-absorbing Silicone Automotive Rubber Gasket Seals O Ring
for Vibration Control
| Product Name | Rubber gasket seal |
| Materials | NBR, HNBR, EPDM, SILICONE, FKM, FLS, FFPM, FPM , PU ,ACM ,SBR |
| Temperature | NBR(-40~120°C),FFKM(-20~320°C) Viton(-20~200°C),Silicone (-70~220°C) EPDM(-50~150°C),PU(-40~90°C) |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent, high
temperature, abrasion resistant, aging resistant, insulation, acid
and alkaline resistant |
| Cerfiticate | ISO 9001:2015 , ISO 14001:2015 ,ISO 45001:2018 , IATF , FDA, REACH,
ROHS, SGS etc. |
| Hardness | 30-90 shores A |
| Color | Red, Black, White, blue, green, Clear, etc |
| Size | Any size, Customized/standard and nonstandard |
| Sample time | If instock, within 3 days after payment |
| Delivery time | 7-15 days by express after payment 10-20 days by ship |
| Shipping | Small quantity: UPS/FeDex/DHL express Large quantity: by Air/Sea |
| Customized | OEM & ODM are welcomed |
| packing | plastic bag&carton box or according to your requirements |
| Application | chemical industry, petroleum industry, medical technique, food
industry, sewage-disposal industry, steel industry, semi-conduct
industry and so on.
|
We can supply material as NBR, FKM, SIL, EPDM, CR, NR, PU, HNBR,
FFKM, ACM ,
SBR , FLS , etc...
Silicone Rubber (Q, MQ, VMQ, PVMQ)
| Material | SIL(Silicone Rubber) |
| Advantage | 1,Excellent Rebound Resistance |
| 2,Excellent Oxygen and Ozone Resistance |
| 3,Excellent Weathering and Heat Resistance |
| 4,Excellent Heat and Low Temperature Resistance |
| 5,Good heat insulation and heat dissipation. |
| 6,Good electrical insulation |
| Disadvantage | 1,Poor Aliphatic-solvent Resistance |
| 2,Poor Alkaline Resistance |
| Temperature | -40℃-220℃, -100℃-250℃(special formula) |
| Application | 1,the household appliances industry seal or rubber parts, such as
electric kettle, electric irons, microwave oven rubber parts. |
| 2,The electronics industry seal or rubber parts, such as mobile
phone keys, shock pad DVD, cable joint seal etc. |
| 3,Contact with the human body on various types of products on the
seal, such as water bottles, water dispensers |
*Service Temperature
For Silicones the service temperatures are from -60 C to 225 C.
Some special types can be used in extreme
temperature up to 300 C and down to -100 C.
*Application
Silicone rubber performs well under environmental and temperature
extremes. It is usually applied in automotive
and aerospace industries where flexibility and longevity are
important. It is also a suitable material for parts that
need FDA approval for food handling equipment and appliances.
What's Each Rubber's Typical Features ?
| Material | PU | EPDM |
| Features | PU is in widely used daily life, industrial and agricultural production, medicine and other fields.In the automotive industry used in the manufacture of damping products, in the mechanical industry used to manufacture seals, belt; In the medicine field is used to manufacture of artificial hearts etc. | EPDM rubber Widely used in auto parts,building waterproof materials, wire and cable sheath, heatresistant rubber hose, autom-otive seals, and other products. |
| Advantages | Outstanding abrasion resistance | Excellent aging, ozone and light stability |
| Easy to hydrolysis | Good resistance to ketones |
| Good resistance to oils and pressure | Excellent resistance to steam |
| Extremely high wear resistance |
Temperature range from | –40 °C to +90 °C(-40F to 194F) | –40 °C to +150 °C(-40F to +302F) |
| Hardness: | 60-95 Shore A | 30-90 Shore A |
| Material | FKM/FPM/Viton | MVQ silicone | NBR/Nitrile |
| Features | Fluorocarbon seal is commonly considered to usein mechanical devices requiring maximum resistance to elevated temperatures, to many special medium,and to high vacuum applications, such as automobile, vacuum equipment and other | MVQ silicone is a non-toxic material. Silicone rubber is widely used in Cookware (Cookware),toys, small appliances and filter, etc.Since MVQ silicone has low tensile strength and abrasion resistance,it cannot be used in extremely demanding applications. | Nitrile rubber has good oil resistance, often used in the manufacture of all kinds of oil resistant gaskets, seals, and rubber hose etc. |
| Advantages | High chemical stability. It has excellent resistance in mineral oils and fats.Special ones having improved exceptional properties | Good resistant to fungal decay Has very good cold flexibility High resistance to dry heat, ultraviolet light and ozone | Excellent resistance to oils Good abrasion resistance |
Temperature range from | -15℃ to 230℃ (5℉ to 446℉) | –70 °C to +220 °C(-94F to 428F) | –40 °C to +120 °C(-4F to 248F) |
| Hardness: | 52-92 Shore A | 25-90 Shore A | 40-90 Shore A |
We have certificates :ISO 9001:2015 , ISO 14001:2015 ,ISO
45001:2018 , IATF , FDA, REACH, ROHS, SGS etc.
IATF 16949 2016.pdf
ISO 9001 2015.pdf
ISO45001.pdf
ISO 14001.pdf
For color , we can make as customers' requirements .Below table is
the colorful o rings
we made.If you need colored o rings , you can give me pantone number .
We can also produce Automotive Rubber Seals ,Connector Rubber Seals
,Power Tool Rubber seals ,Valve
Rubber Seals ,Pipe Rubber Seals ,Semiconductor Rubber Seals
,Hydraulic Pneumatic Rubber Seals ,Pump
Rubber Seals ,Oil and Gas Seals ,Food Grade Rubber Seals ,Medical
Rubber Seals ,Chemical Equipment
Rubber Seals ...etc.
Our Factory
Rui Chen Sealing Co., Ltd was built in 2006, now there are more
than 200 staff. The company has
two branches in Guangdong
and Jiangxi, They are Dongguan Rui Chen Sealing Co., Ltd. and
Shangrao Rui Chen Sealing Co., Ltd..
In recent years, the company has been supported by ShangRao
municipal government and fully enjoy
all the preferential policies
for economic development zone. We will always take "best quality,
best service" as our mission, and make
progress together with you, harmony and mutual win!
Ruichen always meets our customers' requirements. To make sure we
produce high-quality o-rings, our company implements the
following general standards:
1) Raw material incoming inspection standard ASTM D2000 & HG/T
2579-2008 & HG/T 2811-1996
2) Public o-ring dimensional tolerance GB/T 3452.1-2005
3) N-level specification for o-ring appearance quality inspection
GB/T 3452.2-2007
4) Hardness measurement model Micro O-Ring Testing (Type M system)
5) Hardness using standard ASTM D2240 Rubber Standard Test Method
(Shore A)
6) Sampling inspection specification GB/T2828.1-20
Progress
Cooperative partner
Ruichen company have cooperated with many superior customers as
below , we have complete system and excellent productivity
to serve for you
International exhibition
Why RUICHEN?
Many big companies select RUICHEN for their rubber seals and customized rubber parts because we
always
satisfy them in quality, price, delivery, service, etc. At the same
time, we also attach great importance to the
small customers in niche markets.Whether your purchase quantity is big or small, you are our
valuable partners.
High Quality
We continue to manufacture high-quality products for all customers
and pursue 100% customer satisfaction,
which has become one of our core competencies.
Profession
We have rich experience in materials, products, and production and
excellent international trade and language
communication skills.
Best Services
From quoting, sampling, production, and shipping to after-sales,
our sales will provide you with the best service
so that you can rest assured completely.
10000+ Projects Delivered
Over 10K projects have been sent to our customers worldwide in
recent years, and we have received countless
positive comments.
Low Price
Our customers can obtain maximum profits through the ISO management
system and intelligent manufacturing
to reduce our costs continuously.
Massive Capacity
Our in-house facilities allow us to get your projects done fast.
And thanks to our strong relationship with rapid
materials partners, our capacity is not limited.
Fast Delivery
Unlimited capacity, experienced engineers, and a flexible
production system allow us to create your seals and
production parts in a short period.
1000+ Happy Customers
We aim to keep every customer happy with reliable quality, fast
turnaround, and excellent services. We want all
our new customers to become long-term customers.
FAQ
Q: 1 What kinds of materials can you provide?
A: NBR, EPDM, SILICONE,FKM(FKM),NEOPRENE(CR), HNBR ,NR, IIR, SBR,
ACM, AEM,Fluorosilicone(FVMQ),
FFKM etc.
Q: 2 How to select the raw compound for my application?
A: With years of experience working with a variety of material, we
can help select the material that will best suit your
needs while keeping material costs in mind.
Q: 3 How long can we get the quote?
A: If your information is complete, we will provide the quotation
within 8 hours.
Q: 4 Can you provide samples? Is it free or extra?
A: Yes, we can provide samples for free. Freight can be negotiated.
Q: 5 What is the normal lead time for product orders?
A: If the stock generally takes 3-7 days, mold about 15-18 days, no
mold about 25-30 days, depending on the product
situation.
Q: 6 How to check the quality of the bulk order?
A: We have incoming inspection, control the quality of raw
materials, process inspection,to ensure the quality of the
production process, shipping 100% of the full inspection; automatic
inspection machine full inspection, and according
to customer needs before the mass production of pre-production
samples.
Q: 7 What is your standard packing?
A: Plastic bag for inner packing .carton box for outer packing also
be packed according to customer's requirements.
Q: 8 What's the payment term?
A: We accept T/T 30% deposit and 70% balance ,Paypal is also ok
